Application areas: widely used in sand and stone crushing, coal mine, beneficiation processing, chemical industry, abrasive and other industries of feeding operations
Applicable materials: pebble, granite, basalt, quartzite stone, iron ore, limestone

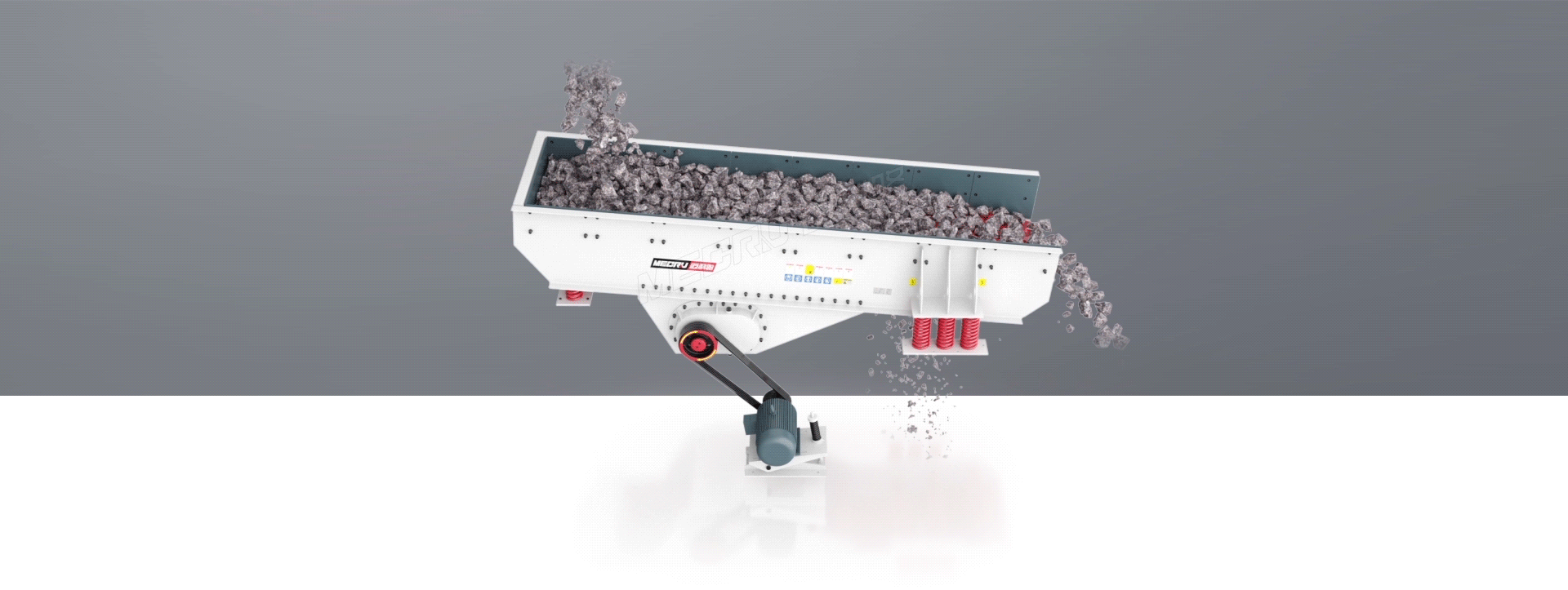

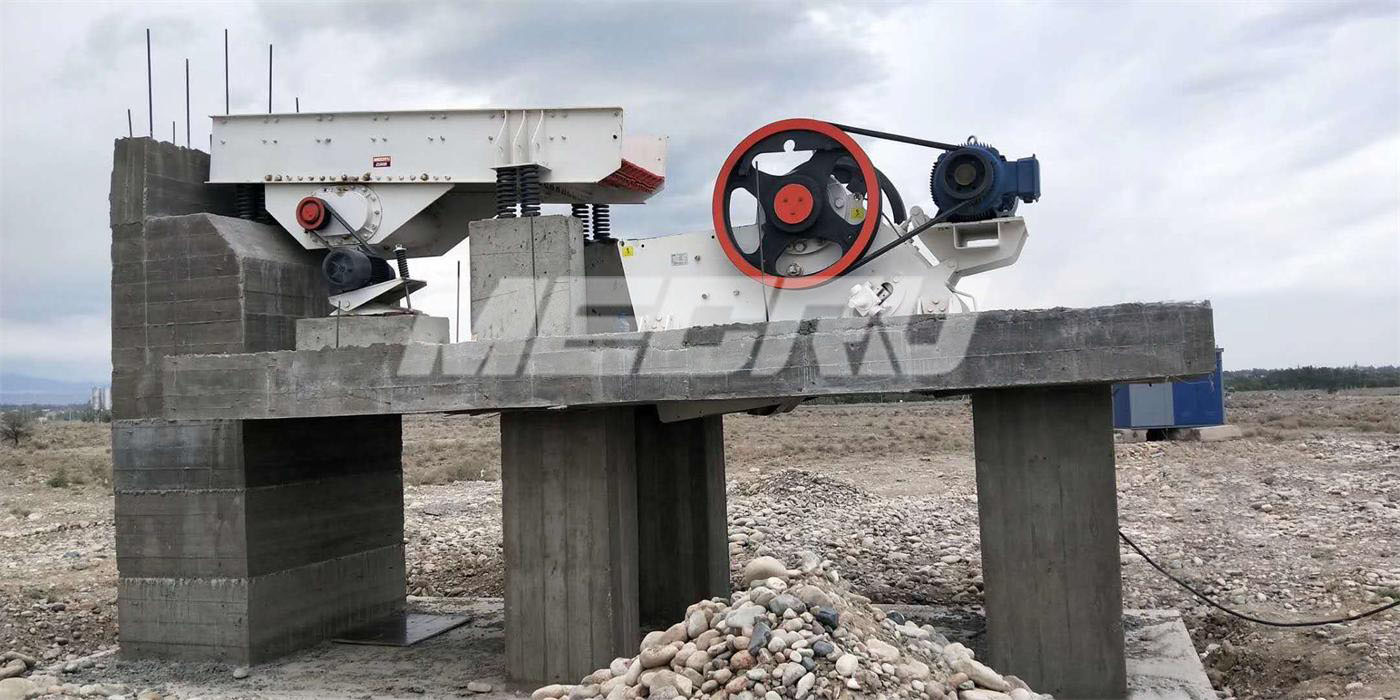

Vibrating feeder is also known as vibrating feeder. With this vibrating feeder ,Block and granular materials can be evenly, regularly and continuously given to the material receiving device from the storage bin in the process of production, In the sand and stone production line ,the vibrating feeder can provide continuous and uniform feeding for crushing machinery, and coarse screening for the material. It is widely used in sand and gravel crushing, coal mining, beneficiation processing, chemical, abrasive and other industries of feeding operation, and their combined crushing and screening equipment.
The vibrating feeder is composed of a feeding trough, a vibration exciter, a spring support, and a transmission device. The vibration source of the trough vibrating feed is a vibration exciter, which is composed of two eccentric shafts (active and passive) and a gear pair. The motor drives the active shaft through the V-belt, and the gear on the active shaft meshes with the passive shaft. When rotating, the active and passive shafts rotate in opposite directions at the same time and then make the tank vibrate and the material flow continuously,to achieve the purpose of conveying materials
| model | (mm)
Max feeder size |
(t/h)
capacity |
Motor model
|
(kw)
Motor power |
（t）
weight |
(mm）
Hopper size |
| ZSW-300×85 | 450 | 55-80 | Y-160L-6 | 11 | 3.8 | 3000×850 |
| ZSW-380×96 | 500 | 90-150 | Y-160L-6 | 11 | 4.6 | 3800×960 |
| ZSW-420×110 | 600 | 120-320 | Y-180L-6 | 15 | 5.3 | 4200×1100 |
| ZSW-490×110 | 600 | 150-350 | Y-180L-6 | 15 | 5.8 | 4900×1100 |
| ZSW-490×130 | 750 | 250-450 | Y-200L-6 | 22 | 6.5 | 4900×1300 |
| ZSW-600×130 | 750 | 300-560 | Y-200L-6 | 22 | 7.8 | 6000×1300 |
| ZSW-600×150 | 900 | 500-800 | Y-225M-6 | 30 | 10.5 | 6000×1500 |
Please send us your request and we will reply to you within 24 hours.
Please feel free to contact us!
Office Tel
0086-152 3869 1010Send Email
[email protected]WeChat / Whatsapp
+8615238691010Our professional team can customize the solution according to your needs and answer your questions
Customize your solution

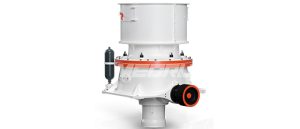

Applicable materials: medium and fine crushing of hard rocks such as iron ore, gold ore, non-ferrous metal ore, granite, quartzite, basalt, etc.

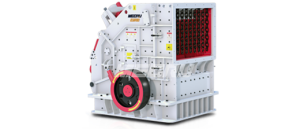

Applicable materials: Quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, and other hard and medium-hard rocks.
