Application areas: dry tailings, water washing sand, slime dewatering, fine sand recovery machine, soil remediation, mud treatment, sewage treatment, etc.
Applicable materials: iron tailings, gold tailings, quartz sand, foundry sand, building materials sand, potassium feldspar dehydration, urban sewage, industrial sewage, river sludge, mud treatment, construction mud, drilling mud treatment

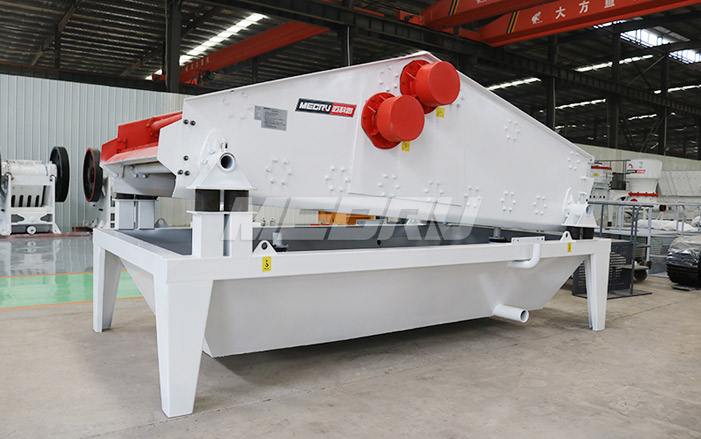

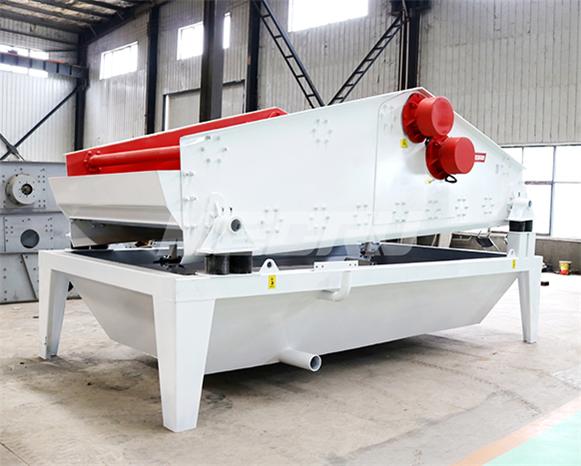

The vibrating dewatering screen is used for coal preparation, ore beneficiation, power generation, sugar making, salt making and other industrial sectors to perform dry and wet screening, dehydration, de-intermediation, and desliming of medium and fine-grained materials. It can be used for the dehydration and de-intermediation of medium and fine-grained coal, as well as the dry and wet desilting of medium and fine-grained materials.
Dewatering screen, also known as high-frequency dewatering screen, changes the water tension on the surface of the slurry through the exciting force. The slurry passes through the screen and becomes underscreen, while the fine materials are blocked by the screen to form a filter layer and move forward under the influence of the vibration force. The dewatering screen is mainly used in the dewatering of tailings in the beneficiation industry, dewatering of washed quartz sand and ceramic slurry, as well as in the electric power, sugar, salt and other industrial sectors for dry and wet classification, dewatering, de-intermediation and de-sliming of medium and fine-grained materials.
| Model | Pump | Specification of hydrocyclone (mm) | Dewatering screen | Production capacity（m³/h） | Weight（t） | |||
| Power (kw) | Size (inch) | Model | Dewatering screen area（㎡） | Power (kw) | ||||
| YH-06-225 | 11Kw | 2.5″ | 300 | 06 × 2.25 | 1.35 | 2×0.75 | 30-80 | 3.9 |
| YH-08-225 | 11Kw | 3″ | 300 | 08 × 2.25 | 1.8 | 2×0.75 | 40-100 | 4.2 |
| YH-10-225 | 15Kw | 3″ | 350 | 10 × 2.25 | 1.25 | 2×0.75 | 70-130 | 4.9 |
| YH-12-300 | 18.5Kw | 4″ | 550 | 12 × 3.00 | 3.6 | 2×1.5 | 100-220 | 7.5 |
| YH-12-300 | 22Kw | 5″ | 650 | 12 × 3.00 | 3.6 | 2×1.5 | 120-272 | 7.8 |
| YH-14-300 | 37Kw | 6″ | 750 | 14 × 3.00 | 4.2 | 2×2.2 | 180-350 | 9.6 |
| YH-14-375 | 45Kw | 6″ | 750 | 14 × 3.75 | 5.25 | 2×2.2 | 230-430 | 11.8 |
| YH-16-375 | 55Kw | 8” | 900 | 16 × 3.75 | 5.25 | 2×3 | 250-500 | 14.3 |
| YH-18-375 | 55Kw | 10” | 2×650 | 18 × 3.75 | 6.00 | 2×5.5 | 300-500 | 16.7 |
| YH-18-2375 | 75Kw | 10” | 2×750 | 18 × 3.75 | 6.75 | 2×5.5 | 400-600 | 19.7 |
Please send us your request and we will reply to you within 24 hours.
Please feel free to contact us!
Office Tel
0086-152 3869 1010Send Email
[email protected]WeChat / Whatsapp
+8615238691010Our professional team can customize the solution according to your needs and answer your questions
Customize your solution

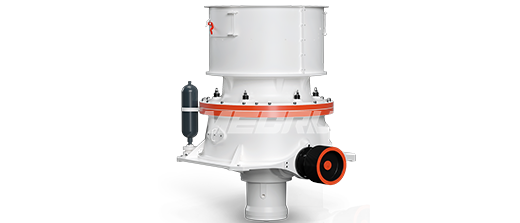

Applicable materials: quartzite, iron ore, granite, basalt, diabase, shale, pebbles, limestone, etc

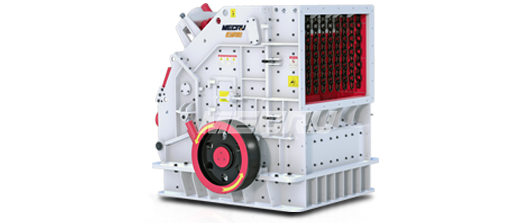

Applicable materials: various ores such as river pebble, granite, iron ore, limestone, slag, quartzite, construction waste, sand and gravel aggregates, etc.

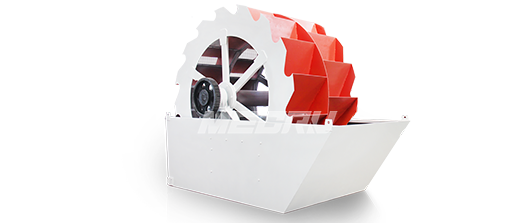

Applicable materials: suitable for metallurgy, building materials, hydropower and other industries sand aggregate washing, grading, purify, etc
