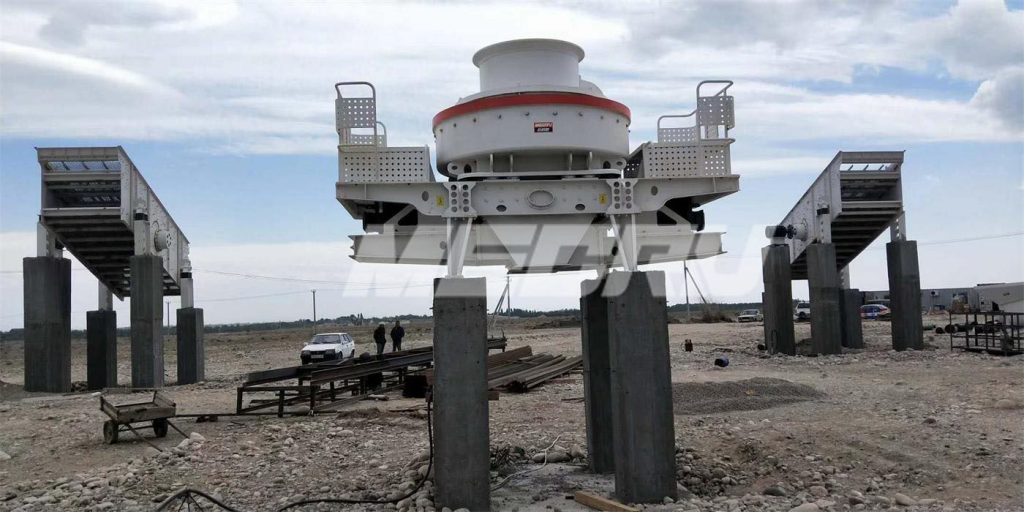

C series vertical shaft impact sand making machine

  • Capacity 60-580t/h
  • Feeding size 30-60mm

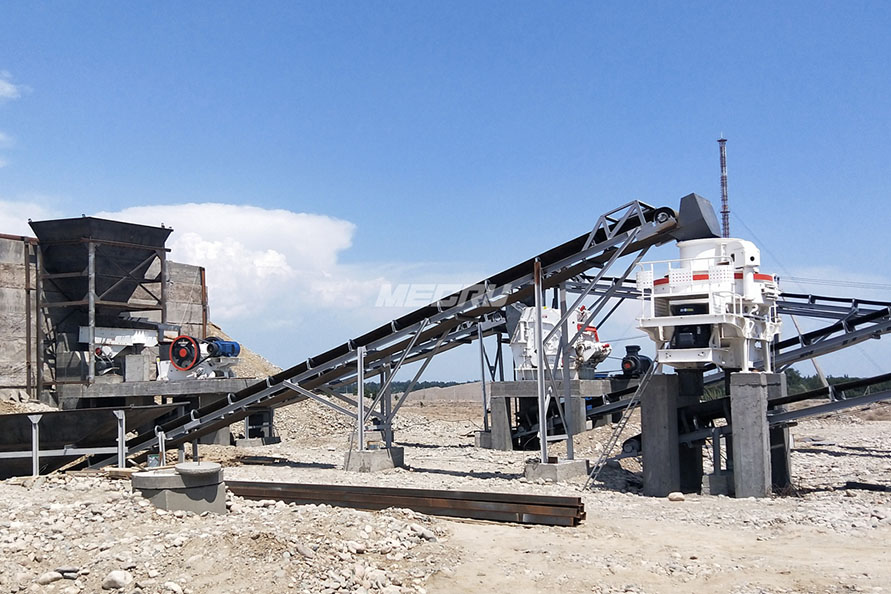

Application areas: used in metal and non-metal ores, building materials, mixing station, dry mortar, sand and stone aggregate crushing and other industries, also widely used in mechanical sand and stone shaping

Applicable materials: pebble, quartz stone, limestone, cobblestone, coal gangue, basalt, granite, diabase, etc

get a quote Online chat

Product Introduction

Mecru HPG multi-cylinder cone crusher is mainly used in the second-stage intermediate crushing and third-stage fine crushing in metal mines and sand and gravel aggregate processing. Crusher safety, adjustment, and locking all use hydraulic devices, so it has what other crushers do not have. It is convenient to adjust the discharge port, and the overload coefficient is small when passing non-crushed objects. It is easy to take out the non-crushed objects that are blocked in the crushing cavity.

Advantages

  1.  better crushing chamber material impact Angle design, wearing parts is not easy to wear consumption, reduce production cost.
  2. crushing, sand making and shaping three functions as one.
  3.  the double pump complementary system can ensure oil supply, when there is no oil flow, no oil pressure can automatically stop, safe and reliable.
  4. the use of thin oil lubrication system, but also can reduce bearing friction, improve the bearing speed, so as to greatly improve the work efficiency.
  5. Wear parts only need to be replaced, and the protective plate can be turned up and down, saving the cost of replacing wearing parts of equipment in later period.
  6.  bearing with excellent brand, to ensure the smooth operation of equipment.

Working principle

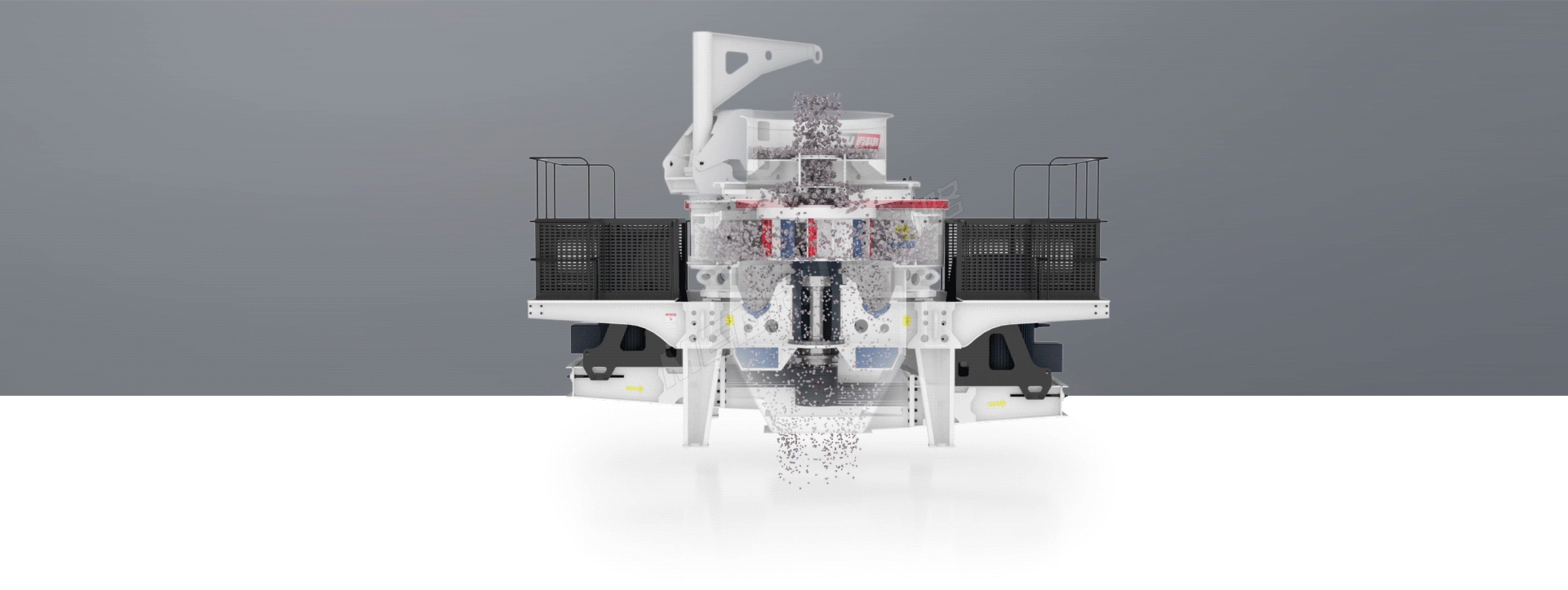

Motor drives the spindle bearing cylinder transmission parts of the high speed rotating, at the same time, the rotor high-speed rotation, along with the spindle do enter the material within the impeller impeller speed after injection into the crushing cavity, and then hit with lining material (stone hit stone) or counter piece of stone (stone hit iron), bounced inclined upward shocks to the top of the vortex chamber, and change the direction of movement, deflecting downward movement,And the impingement with the material emitted from the impeller runner to form a continuous material curtain.

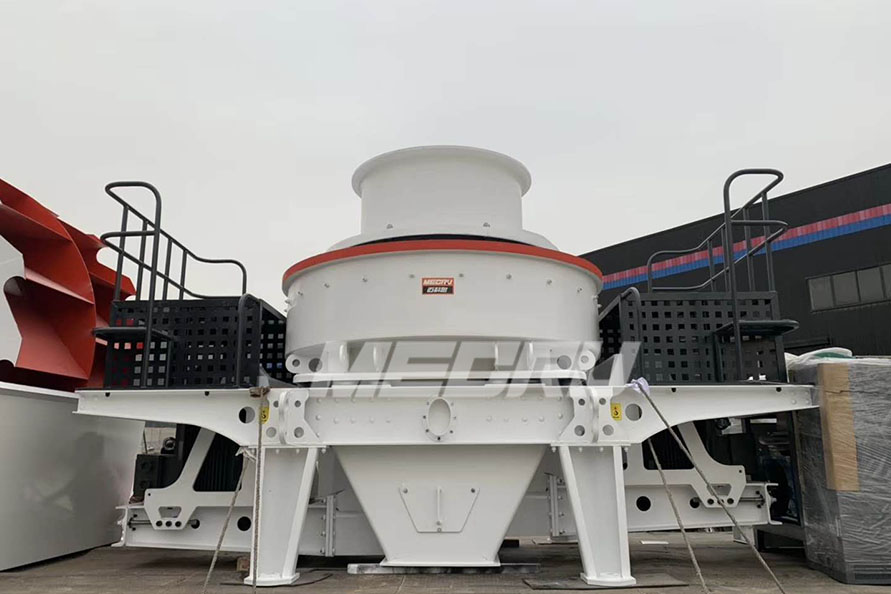

C series vertical shaft impact sand making machine

Parameters

Model Maximum feed size(mm) Process ablity(t/h) Speed of main shaft power
Hard material Soft material Making sand amount traffic shaping (r/min) （kw）
CI8522 ≤35 ≤45 130-200 220-300 1500-1700 180-264
CI9532 ≤40 ≤50 190-280 320-360 1100-1400 320-400
CI1145 ≤45 ≤55 260-350 420-460 1000-1300 400-500
CI1263 ≤50 ≤60 450-490 500-580 900-1200 315×2
Thin oil lubrication station Double oil pump motor power 2×0.25kw
Thin oil lubrication station Safty protection Double complementary oil supply;Intelligent oil supply short circuit automatic stop;Intelligent control of water cooling;Winter motor heating starts
Fuel tank heating power 2kw
Dimensions (L x W x H)(mm) 825x530x1280
