  • Jaw Crusher
  • C Series

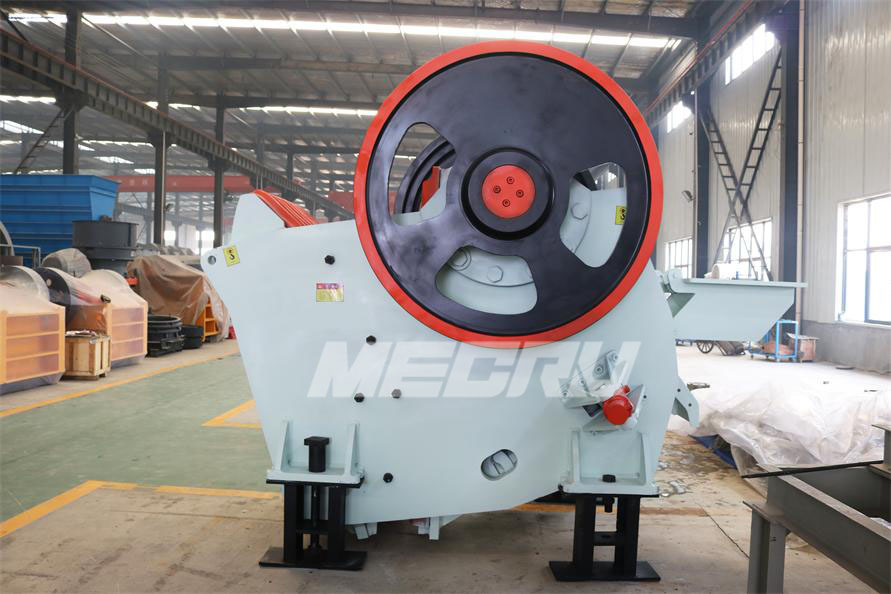

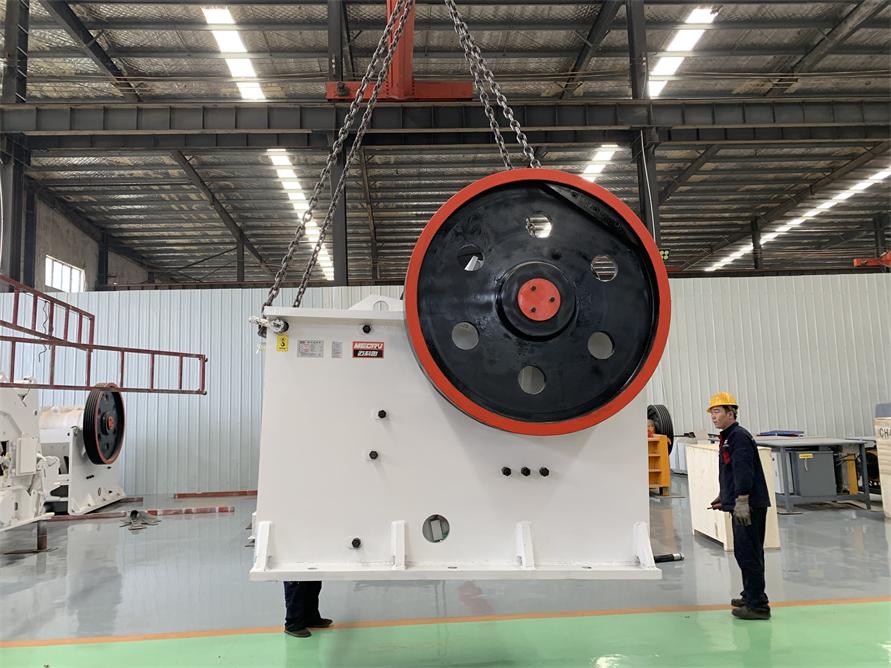

C series jaw crusher

  • Capacity 65-1590t
  • Feeding size 120-1500mm

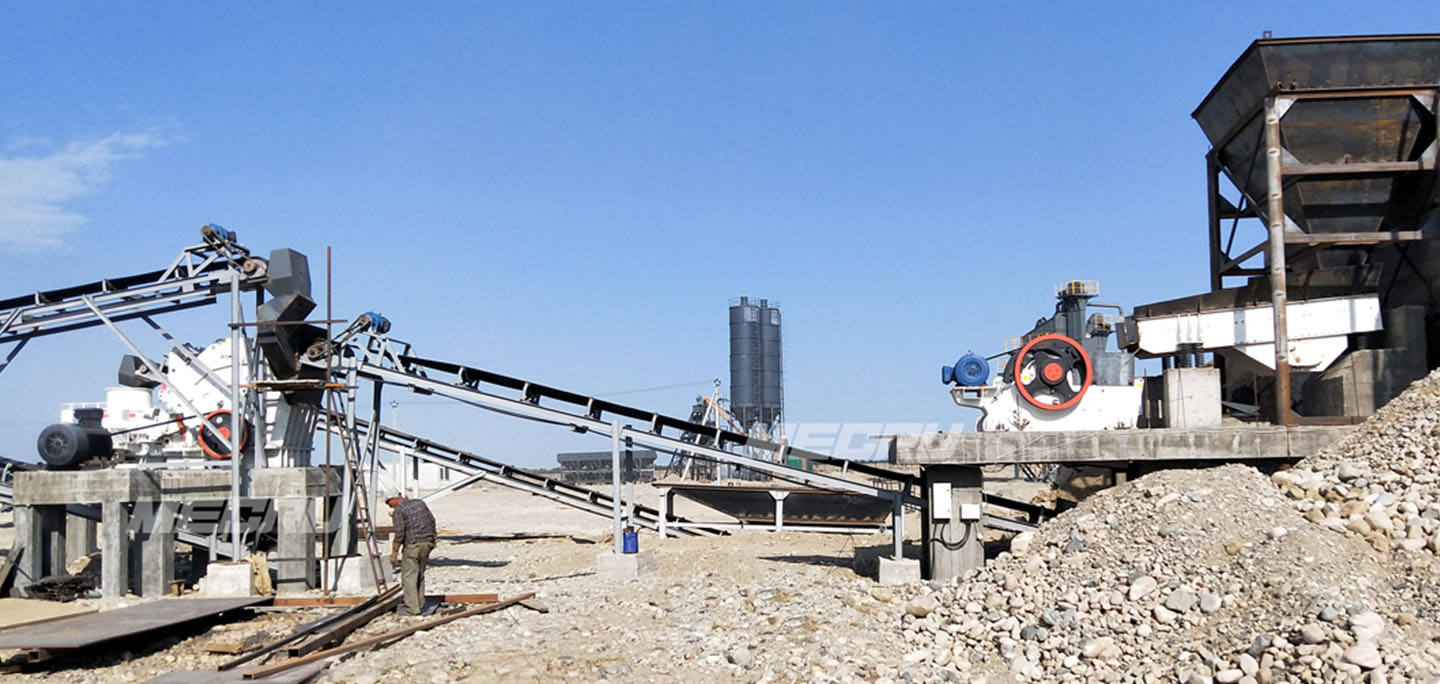

Application areas: sand and gravel crushing, mine crushing, building stone crushing, chemical production, roadbed construction, infrastructure construction, etc.

Applicable materials: river pebble, granite, basalt, iron ore, quartzite and other medium-hard hard rocks.

get a quote Online chat

Product Introduction

Mecru C series jaw crusher is a crusher that is composed of two jaw plates, a movable jaw and a static jaw, which simulates the movement of the animal's jaws to complete the material crushing operation. Through continuous updating and improvement of Mecru, the single machine can save 15%-30% energy, and the system energy saving is more than doubled. Using deep cavity crushing, there is no dead zone when crushing, and the feeding and crushing efficiency have been improved.

Advantages

  1. Deep cavity crushing, no dead zone, feeding and crushing efficiency have been improved.
  2. After the jaw plate is upgraded and optimized, the crushing capacity is improved and the cost is reduced.
  3. Compared with the same type of machine, MecruC series jaw crusher can save energy by 15%-30%, and the energy saving of the system is more than doubled.
  4. The large stroke of the mailbox at the bottom of the crushing chamber ensures a higher output and a better crushing ratio.

Working principle

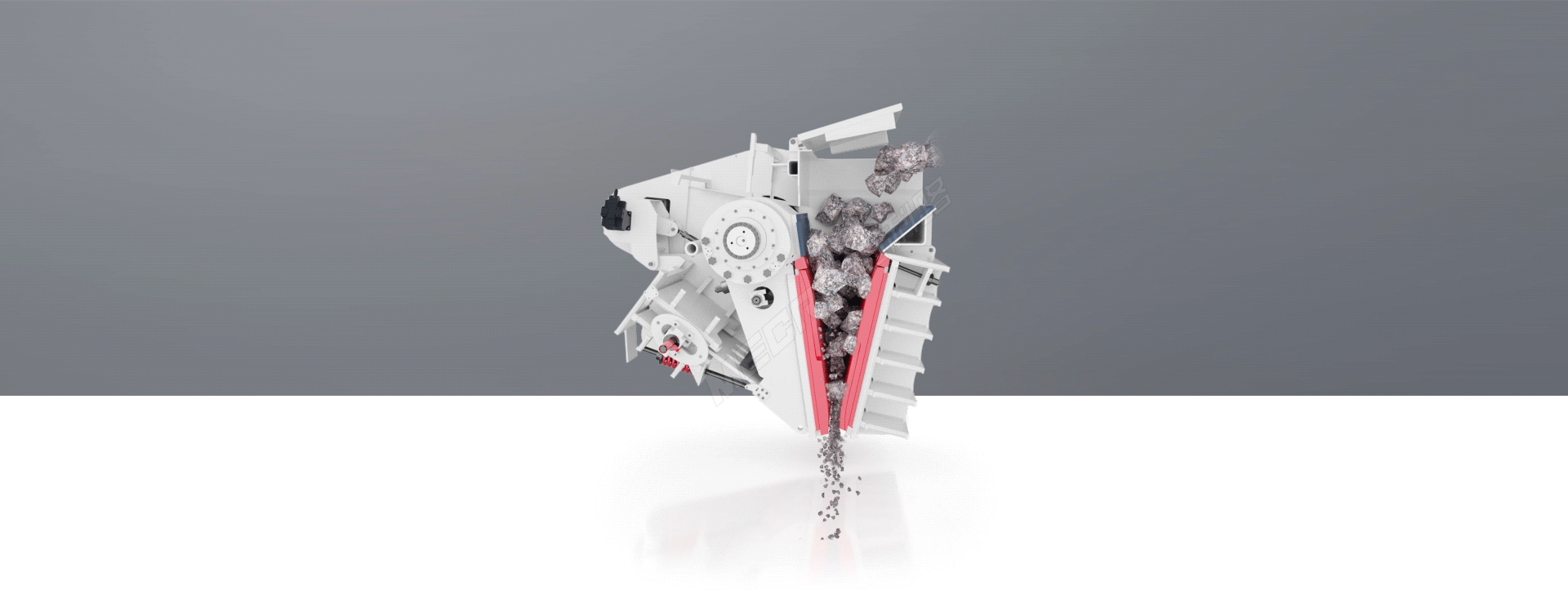

The crushing cavity is composed of two jaw plates, a movable jaw and a static jaw, which simulates the movement of the animal’s jaws to complete the material crushing operation. It adopts a curved extrusion type of work. When working, the motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw plate Approaching the fixed jaw, at the same time, the material is crushed or chopped to achieve the purpose of crushing.

C series jaw crusher

Parameters

Model Feeding port size

(mm)

 Max feeding size (mm) Discharge opening range
（mm）		 Capacity
（t/h）		 Eccentric shaft speed
（r/min）		 Power
（kw）		 Weight
（t）		 Dimension
（LxWxH）
（mm）
C80 510*800 420 40-175 65-380 350 75 9.52 2577*1526*1750
C96 580*930 460 60-175 120-455 330 90 11.87 2880*1755*1460
C100 760*1000 640 70-200 150-545 260 110 23.3 3670*2420*2490
C106 700*1060 580 70-200 155-580 280 110 17.05 3320*2030*2005
C110 850*1100 730 70-200 190-625 230 160 29.5 3770*2385*2730
C116 800*1150 680 70-200 170-600 260 132 21.5 3600*2400*2730
C125 950*1250 800 100-250 290-845 220 160 43.91 4100*2800*2980
C140 1070*1400 920 125-250 385-945 220 200 54.01 4400*3010*3140
C145 1100*1400 950 125-275 400-1070 220 200 63.19 4600*3110*3410
C160 1200*1600 1020 150-300 520-1275 220 250 83.3 5900*3700*4280
C200 1500*2000 1200 175-300 760-1590 200 400 137.16 6700*4040*4465
