CI Impact Crusher

  • Capacity 60-700t/h
  • Feeding size ≤1000mm

Application areas: mining crushing, railway construction, infrastructure, highway, energy, cement, chemical and other industries

Applicable materials: various ores such as river pebble, granite, iron ore, limestone, slag, quartzite, construction waste, sand and gravel aggregates, etc.

get a quote Online chat

Product Introduction

MECRU impact crusher absorbs the more advanced crushing technology at home and abroad, and adopts a large number of new wear-resistant materials for the refined equipment of the rotor and crushing cavity for different applications, which greatly improves the wear resistance, and the equipment performance and processing capacity are greatly improved. improve. It is widely used in the crushing operation of medium-hardness and low-abrasive aggregates.

Advantages

  1. It adopts a heavy-duty and high-strength rotor design, which has stronger impact and crushing force and greater kinetic energy, so that large pieces of material are not afraid of crushing.
  2. A crusher can be used for multiple purposes. By adjusting the installation of the impactframe, it can be converted between coarse crushing and medium and fine crushing.
  3. With a large feeding size, the maximum feeding length can reach 1000mm, and large pieces of material can be fed directly to the crusher.
  4. The plate hammer not only adopts the C-type design, but also selects high wear-resistant materials, so that the crushing efficiency is improved and the wear resistance is also greatly improved.
  5. If you need to replace wearing parts or overhaul the machine, the frame can be opened easily.

Working principle

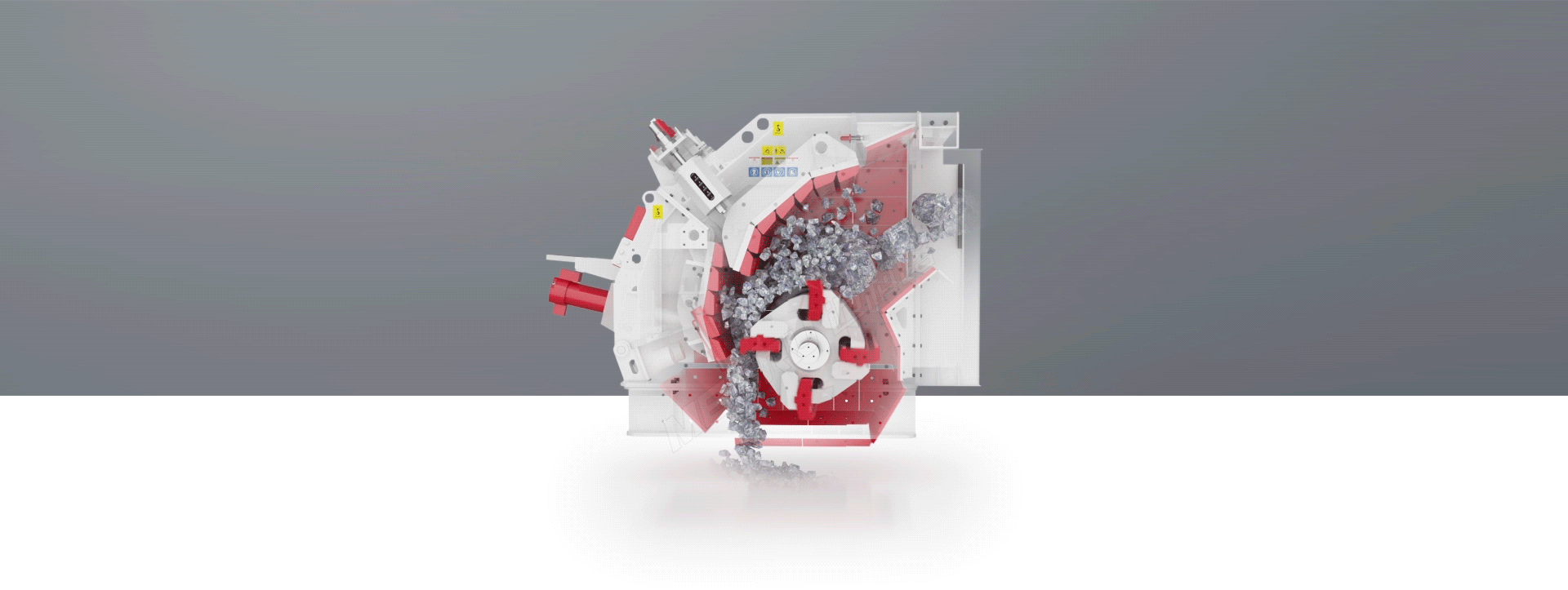

The impact energy is used to crush the material. Driven by the motor, the rotor rotates at a high speed. When the material enters the impact area of the blower, it collides with the blower on the rotor and is broken. The counterattack liner rebounds back to the hammer action area and breaks again. This process is repeated until the material is broken to the required particle size and discharged from the discharge port.

CI Impact Crusher

Parameters

model Feeding size
（mm）		 max feeding size
（mm）		 capacity
（t/h）		 power
（kw）		 weight
（t）
CI411 820*980 600 100-200 90-200 12
CI412 430*980 300 60-130 90-200 12
CI421 960*1360 800 200-400 180-250 17
CI422 450*1360 350 80-250 180-250 17
CI431 1050*1700 800 300-500 200-400 24
CI432 600*1700 350 120-300 200-400 24
CI441 1350*1950 1000 400-700 220-440 29.6
CI442 650*1950 350 150-400 220-440 29.6
