  • Jaw Crusher
  • C Series

Crawler jaw crusher

  • Capacity 100-450t/h
  • Feeding size 400-1000mm

Application areas: Mining crushing, construction waste crushing and recycling, construction aggregate crushing production, highway construction, railway construction, road and bridge construction and other industries.

Applicable materials: Construction waste, iron ore, ore, limestone and other materials.

get a quote Online chat

Product Introduction

The crawler jaw crusher is a fully hydraulically driven, crawler-type mobile crushing equipment developed by Mecru. The equipment is mainly composed of a feeder, a jaw crusher, and a belt conveyor, and the production operation is integrated.

Advantages

  1. The whole machine is integrated. After arriving at the site, the operation can be carried out directly, without the installation of model infrastructure, which saves preparation time.
  2. The power system uses a turbocharged diesel engine, which is energy-saving and environmentally friendly. The direct-drive full hydraulic system adopted has a compact layout, high efficiency, and excellent dustproof, shockproof and moisture-proof effects.
  3. The crushing cavity of the selected crusher adopts “V” design, with large effective stroke and good crushing effect. Using high-quality steel castings, reliable and durable. High-quality special bearings, high carrying capacity and long service life.
  4. The configured vibrating feeder can not only remove dirt and debris, but also control the feeding amount to match the processing capacity of the subsequent crushing production line while conveying materials continuously and uniformly, effectively improving production efficiency.
  5. Adopting a centralized control system and displaying on the LCD screen, the operation is simple and convenient, and easy to use.

Working principle

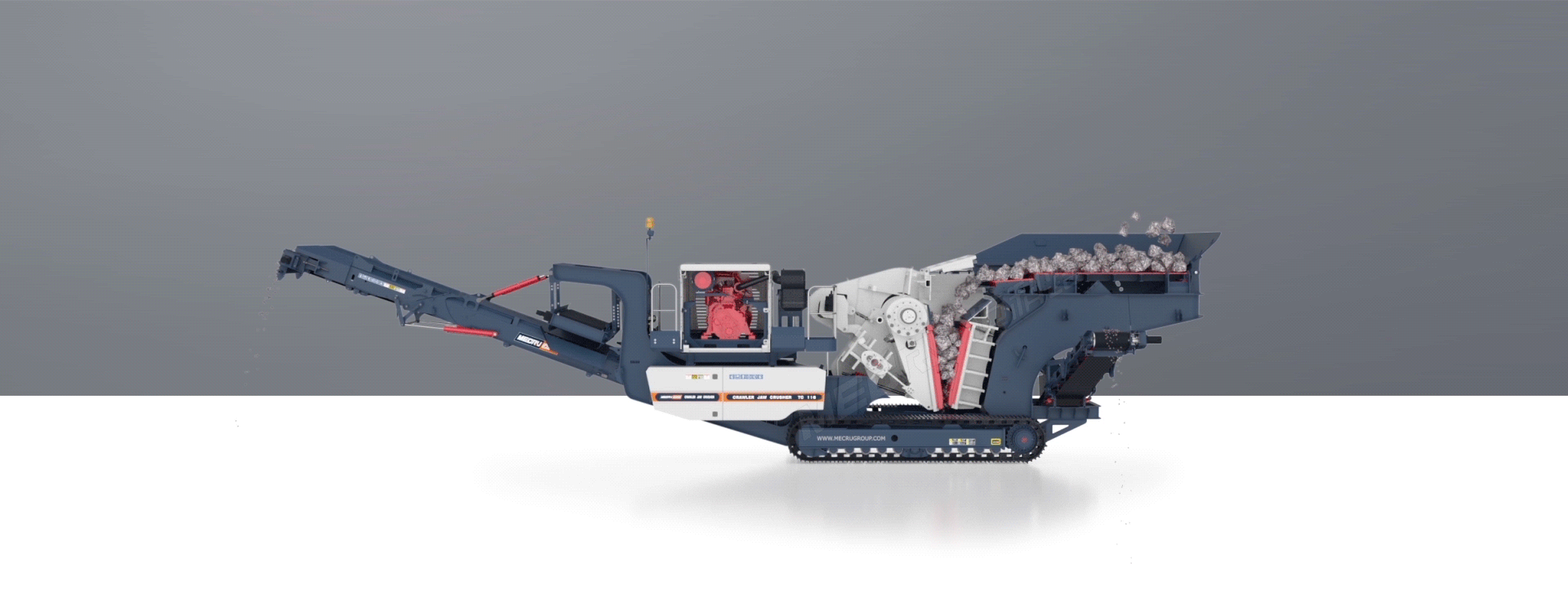

Crawler jaw crushing equipment is often used for coarse crushing of materials and primary crushing of construction waste. First, the material enters the crushing cavity of the jaw crusher through the vibrating feeder, which has a pre-screening function. After being fully squeezed and crushed in the crushing chamber, it is conveyed to other equipment via a belt conveyor for the next step of crushing, or directly discharged via a belt conveyor to complete the crushing operation.

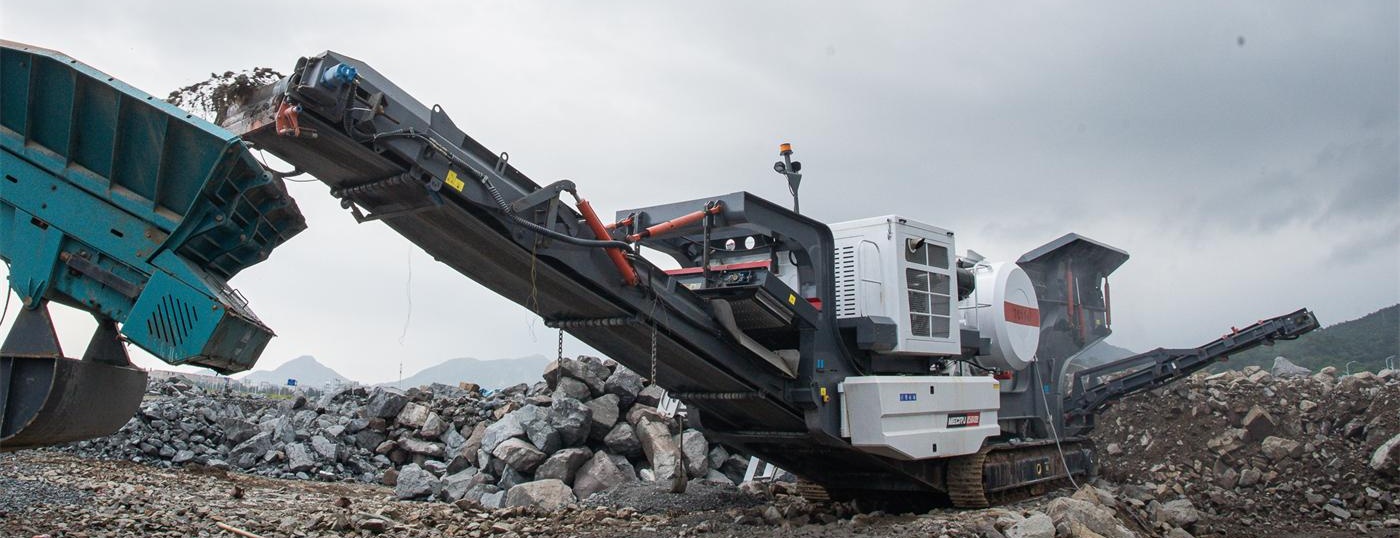

Crawler jaw crusher

Parameters

Project TC96 TC106 TC116
Crusher model C96 C106 C116
Inlet size (mm) 930*580 1060*700 1150*800
Discharge opening size (mm) 60-175 70-200 70-200
Feeder model ZSW3896 ZSW4211 ZSW4913
Length(mm) 3800 4200 4900
Width(mm) 900 1100 1300
Feeding height (mm) 3500 3800 4000
Unloading height (mm) 3200 3500 3600
Transport size (length * width * height) (mm) 12450*2500*3100 14000*3147*3700 15600*3200*3800
Processing capacity (t/h) 100-200 155-350 170-450
Weight(t) 30 46 52
