Crawler screening station

  • Capacity 80-800t/h
  • Feeding size 160-260mm

Application areas: suitable for various quarries and screening of building demolition waste, mining operations, etc.

Applicable materials: screening of construction waste, rocks, ore, blocky road old asphalt concrete and other materials.

get a quote Online chat

Product Introduction

The mobile crawler screening station is one of the many star products of Mecru Heavy Industry. It is suitable for all kinds of quarries and screening building demolition waste, mining operations, etc. The advanced concept of the same type of very products, the high-quality main equipment of Maikelu, and the specific development of the screening industry have finally obtained Maikelu high-performance mobile screening system.

Advantages

  1. The double screen box design brings a very competitive screening area, which not only improves the throughput of materials, but also ensures extremely high screening quality.
  2. Equipped with a large-capacity feeding box, and a remote hydraulic lifting grid. At the same time, a vibrating grid can be selected to further improve the screening efficiency.
  3. There are a variety of screens for customers to choose, suitable for different materials and different process requirements.
  4. Equipped with an excellent controllable electronic control system, with one-button start/stop function, and also equipped with a wireless remote control, which is simple and safe to operate.

Working principle

The material that needs to be screened is fed through the feed port, and is driven to the screen box by a conveyor belt for screening treatment. After screening, materials of different sizes are discharged through different discharge ports. The whole machine has a double screen box design, with a high screening capacity, and is a reliable choice for mobile screening.

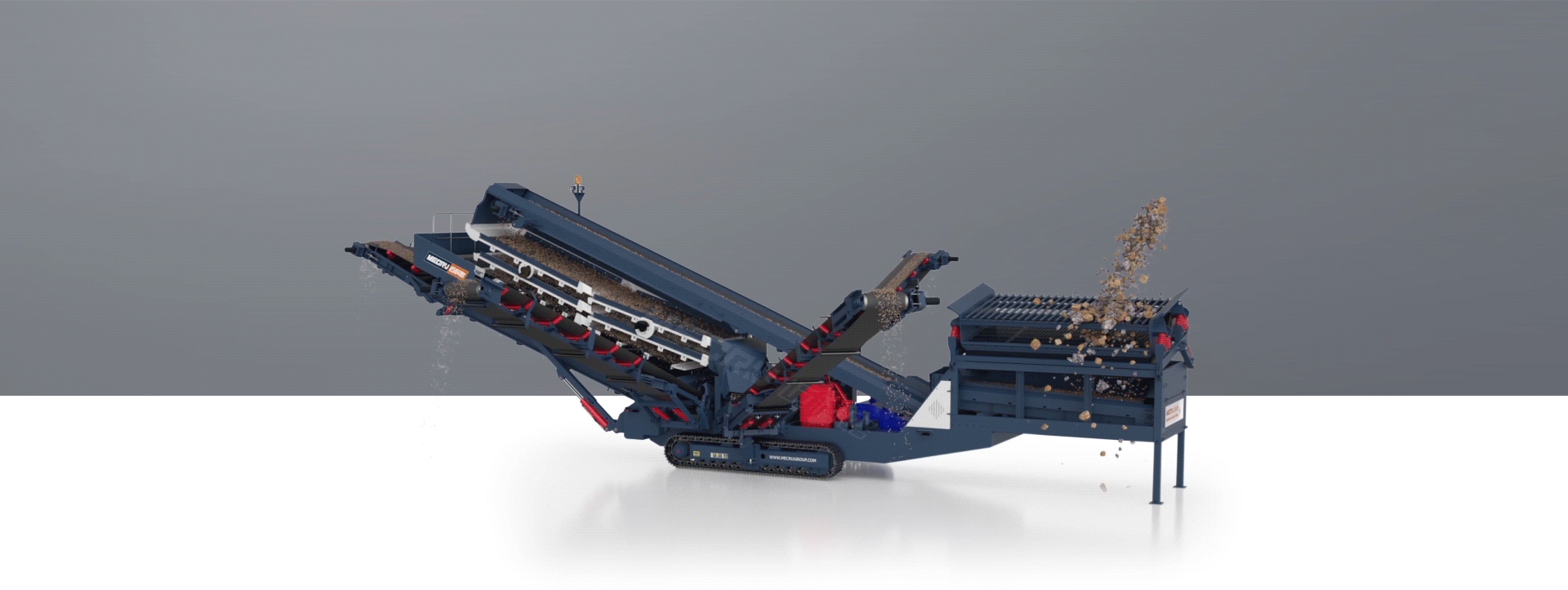

Crawler screening station

Parameters

Project TS4815 TS6018 TS6023
Model YK1548 YK1860 YH2060
deck 2 3 3
(m^3)

Feeding hopper capacity

 7 5 6
Tansportation(long*wide*high)(mm) 14700*3000*3500 14460*3300*3680 18900*4300*3900
Capacity (t/h) 80-300 100-400 400-800
weight(t) 32 32 45
