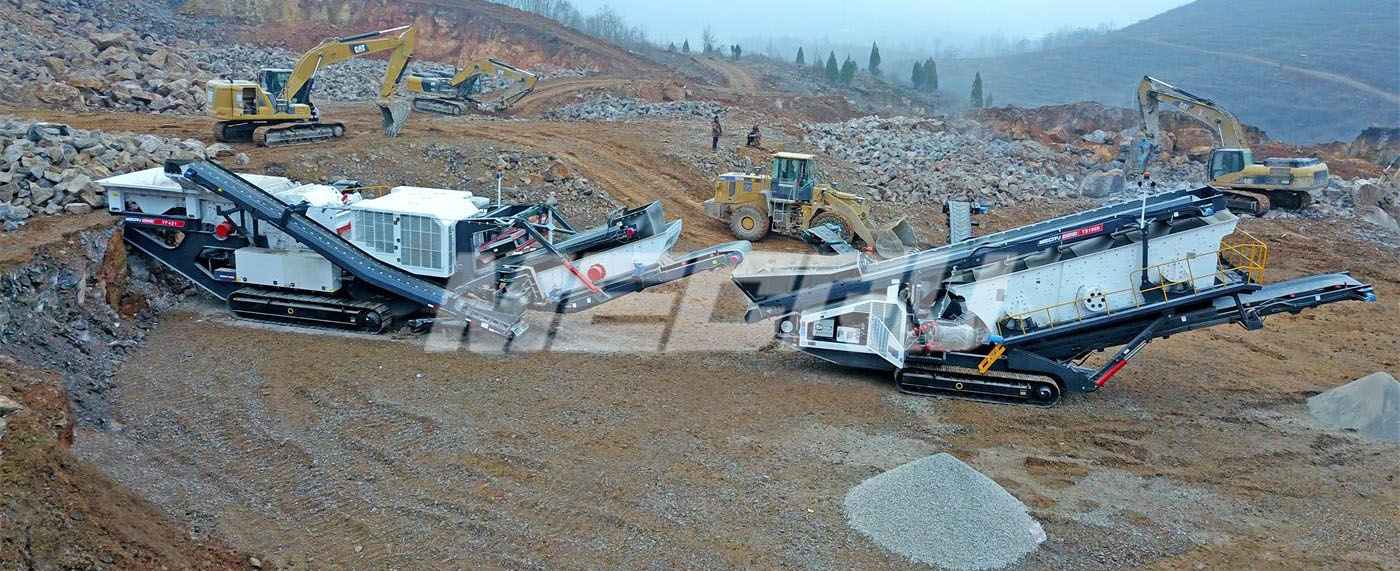

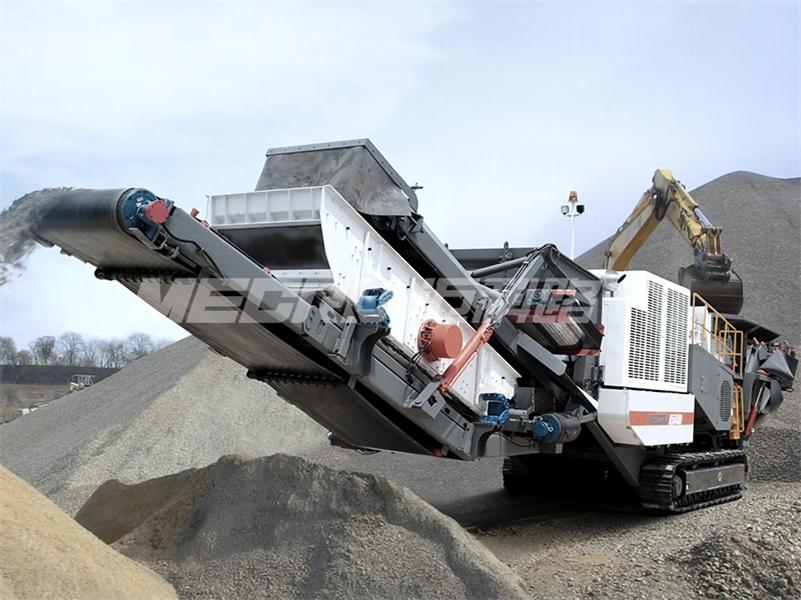

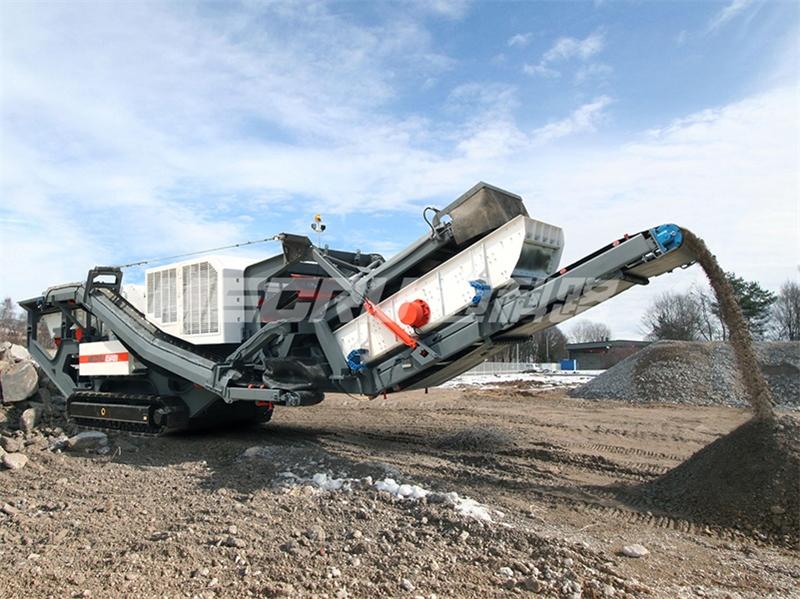

Crawler Mobile Impact Crusher

  • Capacity 100-500t/h
  • Feeding size ≤800mm

Application areas: sand and gravel yard, mining, coal mining, concrete mixing plant, dry mortar, construction waste crushing and recycling, etc.

Applicable materials: coal gangue, sand, basalt, granite, river pebble, ore tailings, construction waste and other materials.

get a quote Online chat

Product Introduction

Crawler Mobile impact crushing equipment is a mobile crushing equipment with impact crushing as the main machine . Users can adopt various configurations for production according to the types, scales and requirements of finished materials. It has the obvious advantages of fast moving and convenient transition. And after reasonable configuration, the whole machine has strong adaptability and strong crushing force.

Advantages

  1. Upload data in real time through the Internet of Things, and monitor the operation of equipment to realize remote fault diagnosis and maintenance.
  2. Centralized control system, all equipment can be operated through liquid crystal display, the system adjusts the operating speed, the operation is simple, accurate and efficient.
  3. The output of finished materials can be measured by the sensor, which helps the production capacity of the equipment to realize digitalization and intelligence.
  4. All belts are made of ultra-wide and thick material, which is wear-resistant and durable. The side discharge belt can be hydraulically folded or extended for easy transportation and can be quickly switched between working and transportation conditions. The return belt can be rotated and folded.
  5. EFI turbocharged inter-cooled diesel engine, energy saving and environmental protection.
  6. Direct drive full hydraulic system, compact layout and high transmission efficiency. Dustproof, shockproof, and moisture-proof effect are excellent, without fear of open air environment.
  7. Good overload protection function effectively reduces the failure rate and prolongs the service life.

Working principle

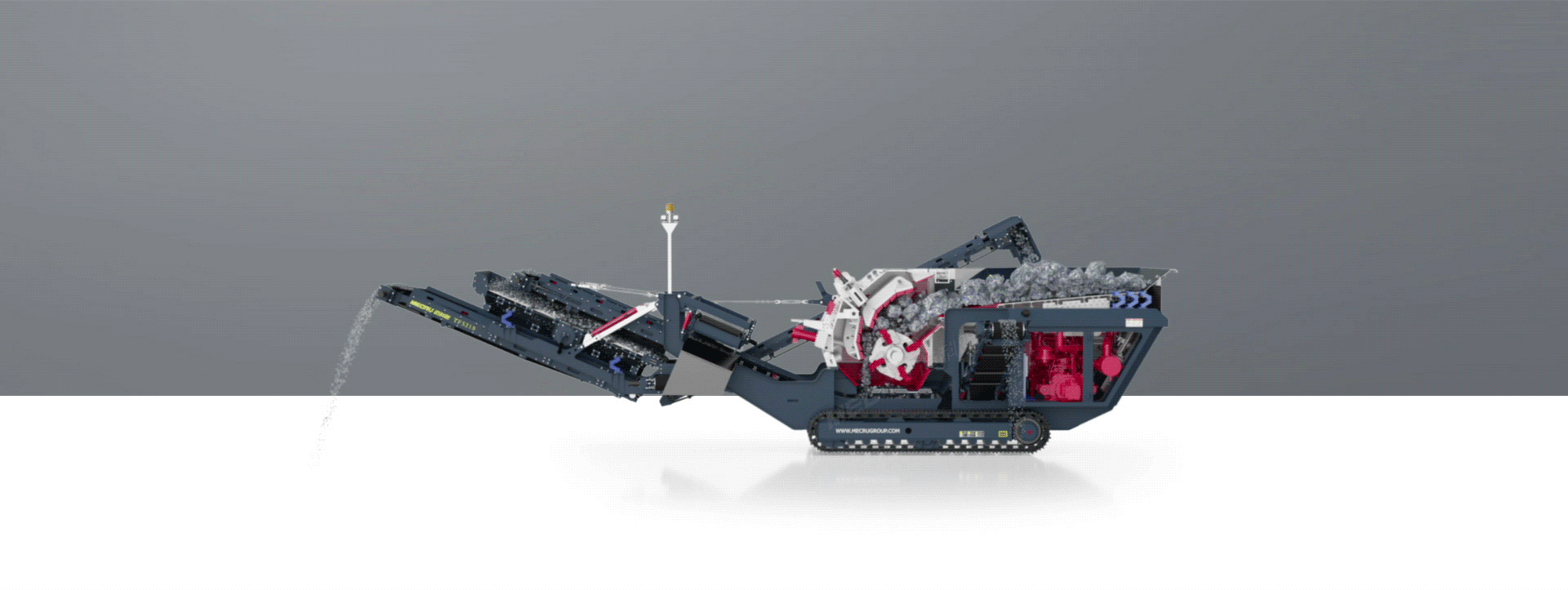

The raw materials enter the crusher through a vibrating feeder with a sieving function for crushing. After the crushed materials are screened, the qualified ones will be passed out through the belt, and the unqualified ones will be passed back to the crusher through the return belt to continue crushing. A closed-circuit system is formed through a circular vibrating screen. After the crushing meets the requirements, the finished materials are transported out by the conveyor, and the finished materials are finally obtained.

Crawler Mobile Impact Crusher

Parameters

Item TF411/TF411S TF421/TF421S TF431/TF431S TF521/TF521S TF5231/TF531S
Crusher model CI411 CI421 CI431 CI521 CI531
Feeder model ZSW3896 ZSW4211 ZSW4913 ZSW1242 ZSW1344
Screen model YK1225 YK1330 YK1445
Capacity(t/h) 100-200 200-350 250-450 200-300 300-500
Feeding size(mm) 930*580 960*1360 1050*1700 1380*1000 1570*1050
Transportation size (mm) 12450*2500*3110 15000*3200*3800 15000*3200*3800 16335*3675*3750 17375*4240*3920
Working size(mm) 12450*2500*3110 16618*3388*3800 17100*3400*3800 16335*6805*5060 17375*8050*5030
Weight(t) 30/38 46/55 53/60 60 72
