Crawler heavy screening station

  • Capacity 80-800t/h
  • Feeding size 10-26mm

Application areas: Suitable for various quarries and screening of building demolition waste, mining operations, etc.

Applicable materials: screening of construction waste, rocks, ore, blocky road asphalt concrete and other materials.

get a quote Online chat

Product Introduction

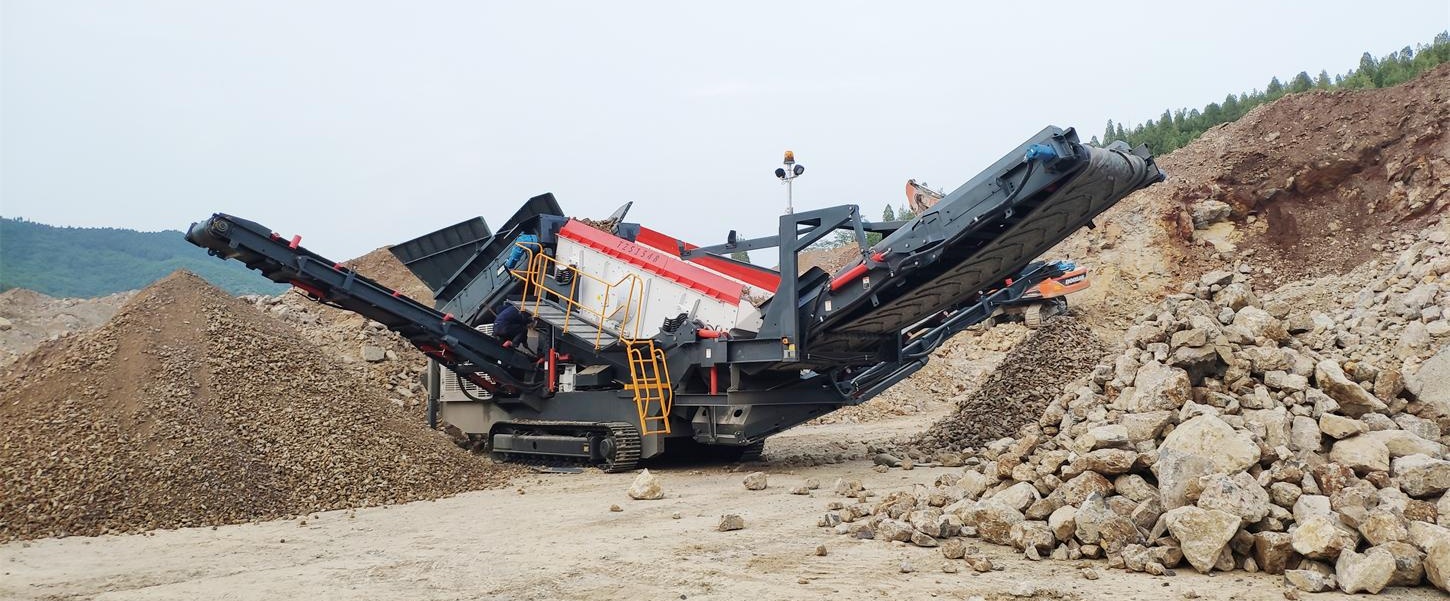

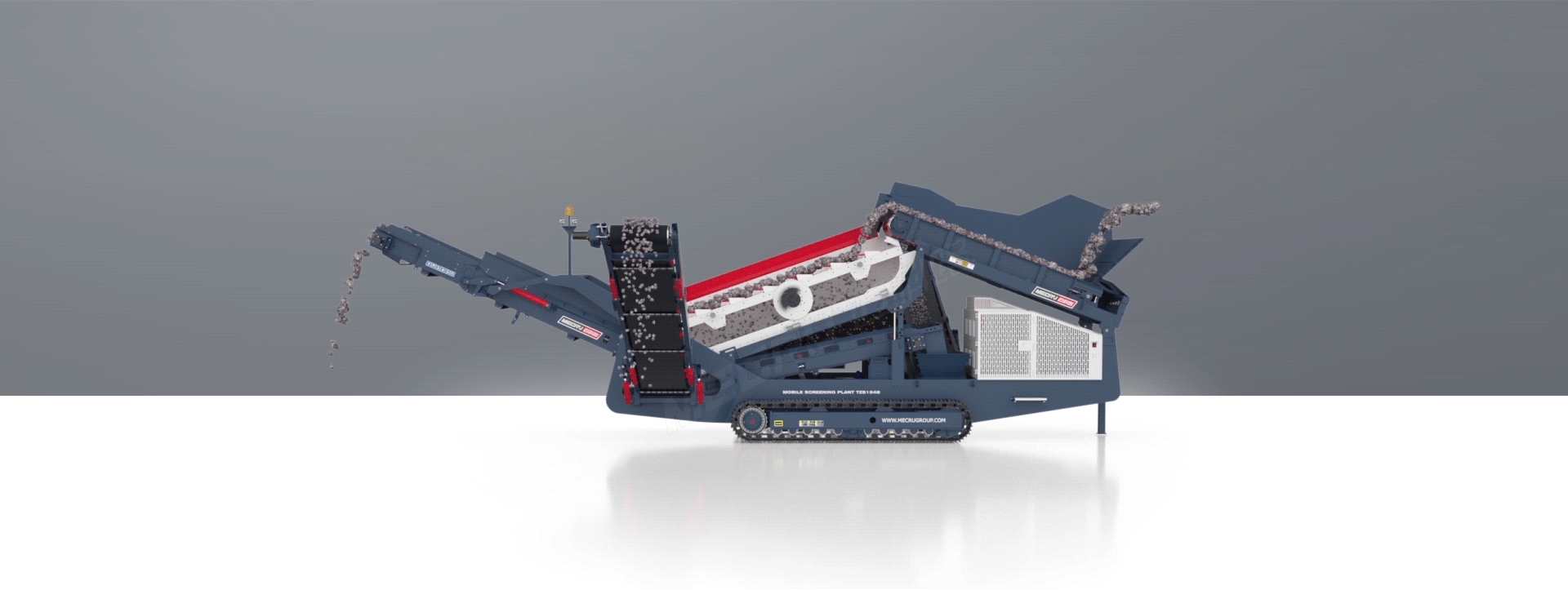

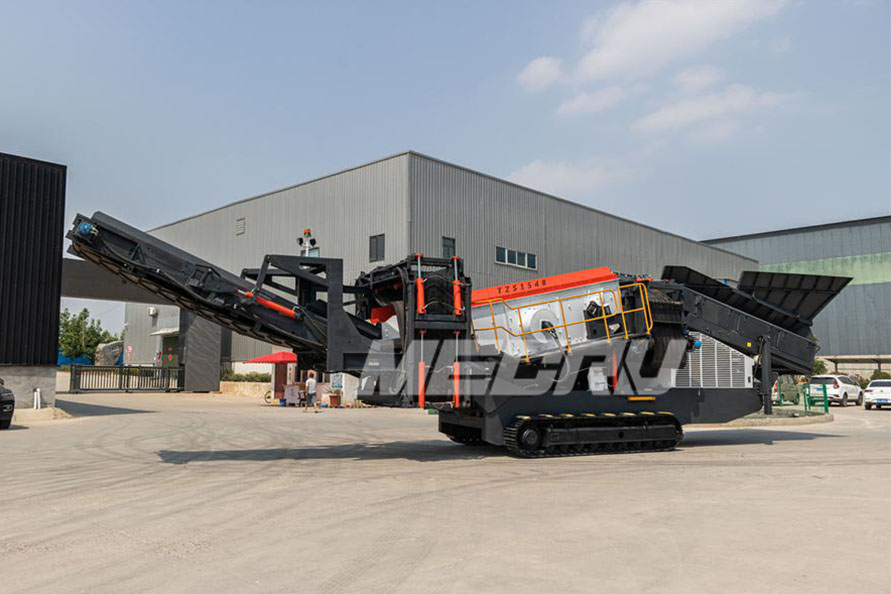

Mecru TZS1548 crawler heavy-duty screening station can be opened directly in the workplace, easy to carry, and high screening efficiency, which is very suitable for difficult field operations such as bottlenecks and urban demolition. The whole machine is composed of vibration source, screen body, screen mesh and crawler chassis. It is a heavy-duty mobile screening station that moves on a crawler. It has a wide range of application scenarios in the field of mine screening and mobile screening. It can be combined with the primary crusher and can be used as a single-line screening

Advantages

  1. The excellent design of the heavy-duty screen allows it to work in conjunction with the primary crusher, and it can also be used as a high-performance crawler mobile heavy-duty peeling screening equipment for first-line screening.
  2. The crawler-type design has no fear of terrain test, and the movement is free. The transition can be quickly achieved, and the complex terrain can also be easily passed.
  3. Large hopper, full load operation, large stacking capacity and large handling capacity.
  4. The high-performance screen box can be equipped with a variety of screens, with high screening efficiency. The screen size can be selected according to the customer’s discharge requirements, and the screen replacement efficiency is high.

Working principle

The material that needs to be screened is fed through the feed port, and is driven to the screen box by a conveyor belt for screening treatment. After screening, materials of different sizes are discharged through different discharge ports. The excellent design of the heavy-duty screen allows it to work in conjunction with the primary crusher, and it can also be used as a high-performance crawler mobile heavy-duty peeling screening equipment for first-line screening.

Crawler heavy screening station

Parameters

item TZS1548
Model TZS1548
Pre-selected screen width x length (mm) 1570×5000 1570×5000
layer 2
Feeding hopper capacity (m^3) 7 7
Transport size (length * width * height) (mm) 14901*3550*3752 14901*3550*3752
Processing capacity (t/h) 80-800 80-800
 weight (t) 36 36
