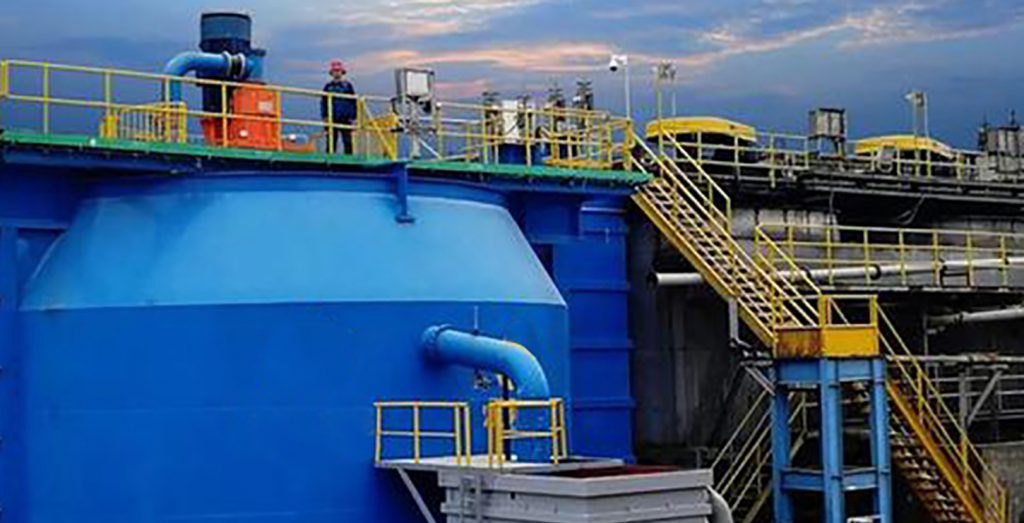

YF Round Flotation Cell

Capacity 0.2-320t/h
Feeding size ≤25mm

Application areas: Copper Ore Flotation，Gold Ore Flotation，Iron Ore Flotation，Coal Flotation

Applicable materials: none

get a quote Online chat



Product Introduction

In the general mineral processing process, the flotation machine is an important equipment for froth flotation. After the slurry is fully aerated and stirred, useful minerals are enriched to complete the flotation operation. The excellent performance of Mecru NM round flotation cell greatly improves the flotation recovery rate of coarse and fine particles. The operation is simple, the energy consumption and air consumption are very low, and the modular layout is allowed.

Advantages

Mecru NM round flotation machine has froth chute with correct design and direction, which ensures excellent flotation index during production.
The froth flotation process is mature and reliable, suitable for most ores, and has excellent flotation performance.
The froth flotation process is upgraded. Compared with products of the same type, the area is smaller and the energy consumption is lower.
Reasonable deployment combined with advanced technology at home and abroad, the auxiliary equipment is used less, the process flow is compact, and the cost is reduced and the efficiency is increased.
Optimized technology, improved recovery rate, improved control system, adapts to changes in different feed grades and capacity.

Working principle

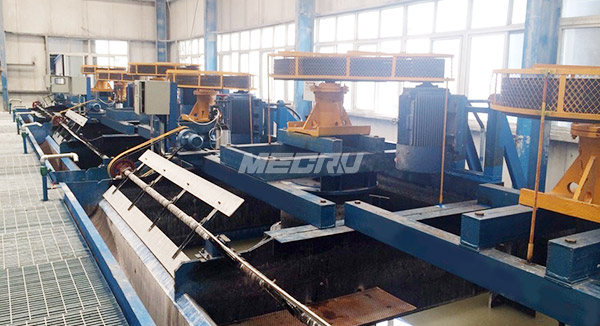

When the flotation machine is working, as the impeller rotates, the slurry in the tank is sucked from the bottom of the impeller to the blades of the impeller from the bottom of the tank. At the same time, the low pressure air fed by the blower is into it through the hollow shaft and the air distributor of the impeller. After the pulp and air are fully mixed between the blades, they are pushed out from the upper half of the impeller in an upward direction, and flow stably and oriented by the stator to enter the entire flotation cell for flotation.

Parameters

Model	Tank volume(m³)	Tank diameter(mm)	Motor Power(kw)
YFX-5	5	2150	15
YFX-10	10	2700	22
YFX-15	15	3080	35
YFX-20	20	3370	37
YFX-30	30	3800	45
YFX-40	40	4240	55
YFX-50	50	4500	75
YFX-70	70	5000	90
YFX-100	100	5650	110
YFX-130	130	6150	132
YFX-160	160	6500	160
YFX-200	200	7100	200
