Spiral chute

  • Capacity 0.2-45t/h
  • Feeding size 0.02-0.4mm

Application areas: concentrating mill, quarry,

Applicable materials: iron ore, ilmenite, chromite, pyrite, zirconite, rutile, monazite, tungsten ore, tin ore, niobium ore, etc

get a quote Online chat

Product Introduction

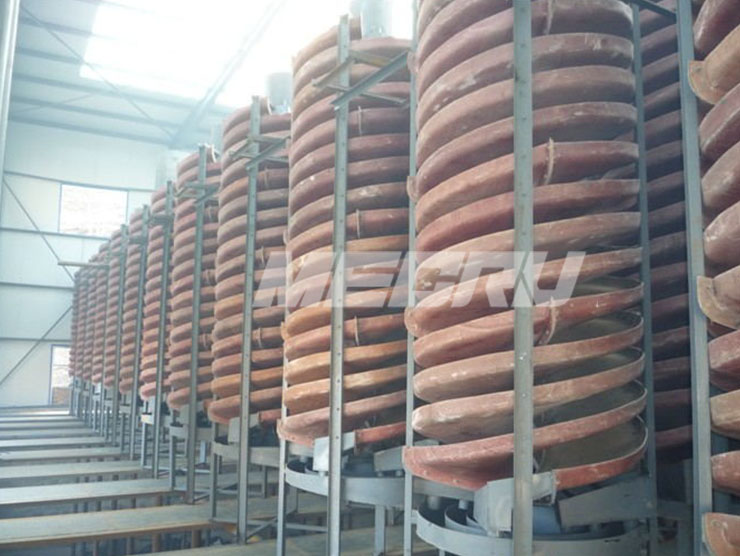

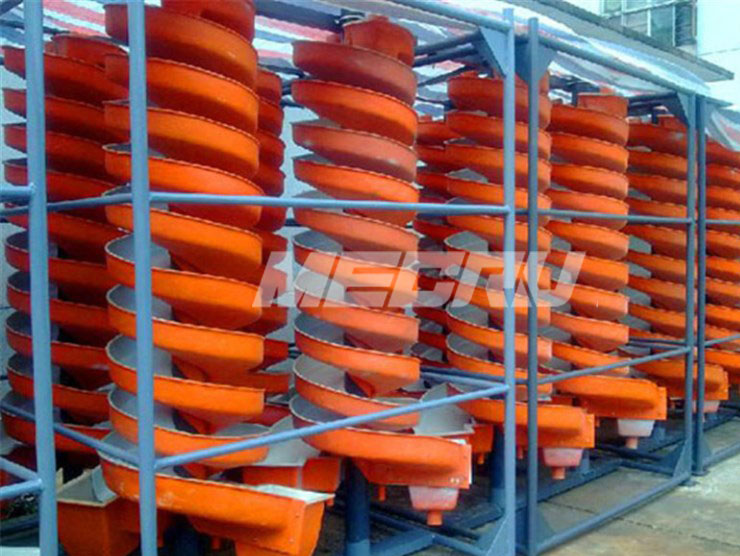

Spiral chute is a combination of the advantages of spiral concentrator, shaking table, centrifugal separator ,it is suitable for the separation size 0.3-0.02 mm fine material of iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphorus ore , tungsten, tin, tantalum, niobium and  other non-ferrous metals, rare metals and non-metallic objects which has a specific gravity difference.

Advantages

  1. 1, the separation process is stable, easy to control, to allow a wide range of ore concentration, high enrichment ratio, high recovery rate.
  2. simple installation, convenient operation, small investment and quick effect.
  3. 3, mineral processing stability, clear ore separation.
  4. 4, keep away from moisture, rust and corrosion resistance.

Working principle

The ore is sent to the two feed openings on the top of the screw, add supplementary water, adjust the concentration of ore paddle, The ores naturally swirl downward from high. An inertial centrifugal force is generated in the rotating flow of the inclined plane.The specific gravity, particle size and shape of ore.By swirling gravity and centrifugal force,The ore and sand are separated, the concentrate flows into the concentrate hopper and is piped out, and the tailings flow into the tailings hopper is piped into the sand tank and discharged, completing the whole process of mineral processing.

Parameters



Model



Outside Diameter(mm)



Inside Diameter(mm)



Pitch of screw(mm)

   Span ratio





Gradient



Number of  threads





Number of

Turns



Max feed size(mm)



Mine density(%)



Capacity (t/h)



floor area(㎡)



Height(m)
D|2000 2000 2000 1200 0.6 9 2-4 3.5 0.04-0.4 20-40 15-45 5.7 6.8
D|1500 1500 1500 900 0.6 9 2-4 4 0.03-0.3 20-45 10-25 5.8 6.1
D|1200 1200 1200 720 0.6 9 2-4 4-5 0.03-0.3 30-50 4-6 2 5.23
540
LI900 900 900 540 0.4 9 2-3 4-5 0.03-0.3 30-50 2-3 1.2 4
360 0.6
LI600 600 600 390 0.4 9 1-2 4-5 0.02-0.2 30-50 0.8-12 0.5 2.6
360
LI400 400 400 180 0.45 9 1-2 4-5 0.02-0.2 30-50 0.5-0.2 0.25 1.3
