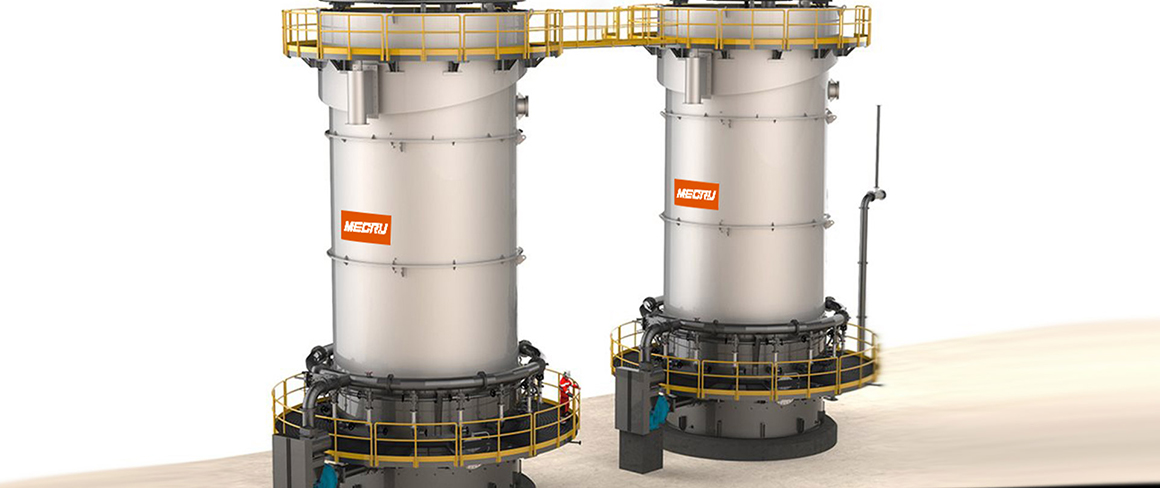

Column Flotation Cell

Capacity 3-800m³/h
Feeding size none

Application areas: Copper Ore Flotation，Gold Ore Flotation，Iron Ore Flotation，Coal Flotation

Applicable materials: none

get a quote Online chat

Product Introduction

With the rapid development of mineral processing industry, the breakthrough of automatic control technology and the improvement of froth generator, column flotation cell has been widely used in the field of froth flotation operation. Column flotation cell has the advantages of simple structure, small occupation area, good technical index, low energy consumption, low dosage of reagents, short construction cycle, low maintenance cost, simple operation and control, which are not possessed by traditional flotation cell.

Advantages

Wide range of application, can be used in all kinds of mineral processing of coarse, scavenging and cleaning.
The column flotation cell is simple in structure, convenient in manufacturing, and covers a small area.
Power consumption is 50% of the traditional flotation cell, greatly Reduce power consumption.
High separation efficiency, fine powder product quality is good.
Highly automatic, low dependence on skilled workers, make production more stable and efficient.
Compared with traditional flotation cell, column flotation cell of Mecru has less investment, short construction period and can be put into production quickly.

Working principle

Ore pulp in the upper cylinder natural inflow, compressed air through the micro bubble generator air into the cylinder and generate froth, ore pulp flows from the top down, and the bubbles float from the bottom up, ore particles and bubbles after the collision, stick on the bubble, The concentrate froth rises to the top and is discharged, the ore tailings flow is discharged at the bottom, The gangue attached to the bubbles is cleaned by spraying water on the upper part, so as to achieve the purpose of cleaning.

Parameters

Model	ΦDiameter	Froth Zone(㎡)	Feed concentration(％)	Capacity (m³/h)	Air Suction Amount(m³/h)
C-500	Φ500	0.196	10－40	3－11	17－25
C-800	Φ800	0.503	10－40	5－18	30－45
C-1000	Φ1000	0.785	10－40	8－28	47－71
C-1200	Φ1200	1.131	10－40	12－41	68－102
C-1500	Φ1500	1.767	10－40	19－64	106－159
C-1800	Φ1800	2.543	10－40	27－92	153－229
C-2000	Φ2000	3.142	10－40	34－113	189－283
C-2200	Φ2200	3.801	10－40	41－137	228－342
C-2500	Φ2500	4.524	10－40	49－163	271－407
C-3800	Φ3800	11.341	10－40	122－408	680－1021
C-4500	Φ4500	15.90	10－40	210－800	830－1560
