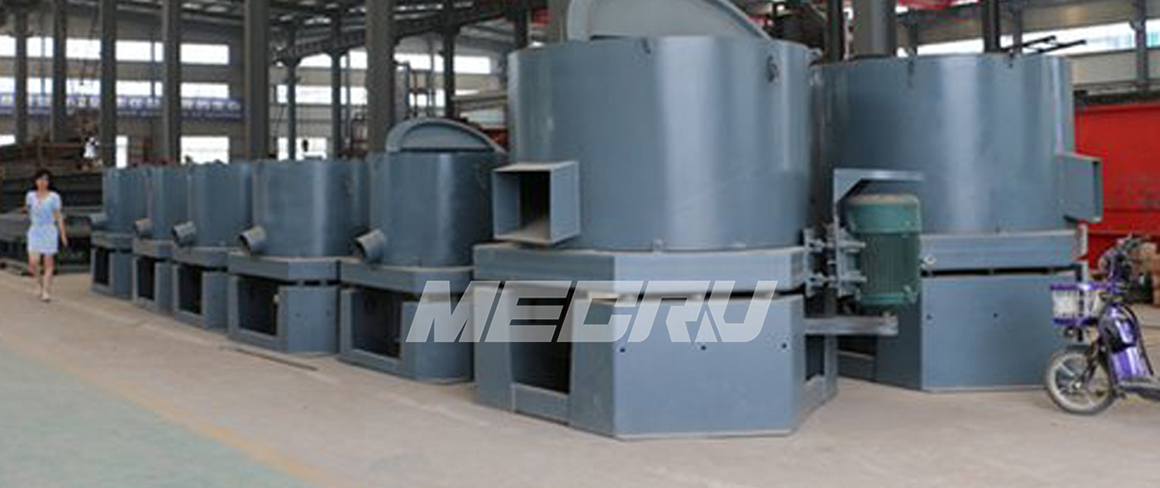

Centrifugal Gold Separator Machine

Capacity 0.25-120 t / h
Feeding size 0-6mm

Application areas: separation of heavy mines such as gold mine, silver ore, platinum ore, copper mine, tin mine, and lighter minerals.

Applicable materials: gold mine, silver mine, platinum mine, copper mine, tin mine, etc.

get a quote Online chat

Product Introduction

The gold centrifuge is a reinforced gravity gauge device based on centrifugal principle. In the high-power strengthening gravity field, the gravity difference of minerals with large weight and specific gravity is greatly enlarged, which makes the separation between the lightweight minerals easier than the natural gravity field; and the special material bed protection structure is Under the interaction of fluid water and interference settlement of patent technology, it can be continuously retracted. Under the above conditions, the heavy mineral particles can replace the light mineral particles to remain in the position of the light mineral particles in the selected bed, and the light mineral particles are discharged as the tailings, thereby achieving the mineral particles according to the specific gravity.

Advantages

High rich and recovery rate
The mineral process is stable and reliable
No chemical, environmentally friendly
Less water, low power consumption
Low production cost, good wear resistance, simple maintenance
The design is compact, small, easy to integrate into the process of existing distribution plants

Working principle

At the time of operation, the centrifugal acceleration in the enriched cone can reach 60 times or more gravity. When the slurry enters the bottom of the enriched cone, the slurry is in the inner side wall of the enriched cone under the action of centrifugation. The inner wall is moved upward, and the bed is fluidized by continuously watering water in the cone in the inlet hole of the rich cone. Under the common action of centrifugal and anti-hydraulic force, monomer gold and other heavy mineral particles can overcome the resistance of water, centrifugal settlement or drilling into the concentrate bed. And the centrifugal force of the pulse mineral is small, it is difficult to overcome the action of anti-hydrolysis, and the axial direction of the axial water flow force and the axial force of the centrifugal force are discharged to the enrichment cone into tailings.

Parameters

Model	STLB20	STLB30	STLB60	STLB80	STLB100
Capacity(t/h)	0.25-0.30	2-3	10-15	35-40	80-120
Feeding size(mm)	0-3	0-4	0-6	0-6	0-6
Feeding density(%)	0-50	0-50	0-50	0-50	0-50
Recoil water yield(t/h)	1.5-2	4-6	10-15	17-25	40-60
Capacity(kg/time)	2-3	10-20	30-40	60-70	70-80
Power(kw)	0.75	1.5	4	11	18.5
Rotating speed	800	600	460	400	360
Pressure MPa	0.04	0.1	0.16	0.18	0.2
Dimension(mm)	790×785×790	1180×1140×1250	1970×1670×1750	2300×1800×2200	2400×2000×2300
Weight(kg)	145	400	1000	1500	2000
