Application areas: rotary kiln system
Applicable materials: slag, limestone, coal powder, slime, clay and other materials

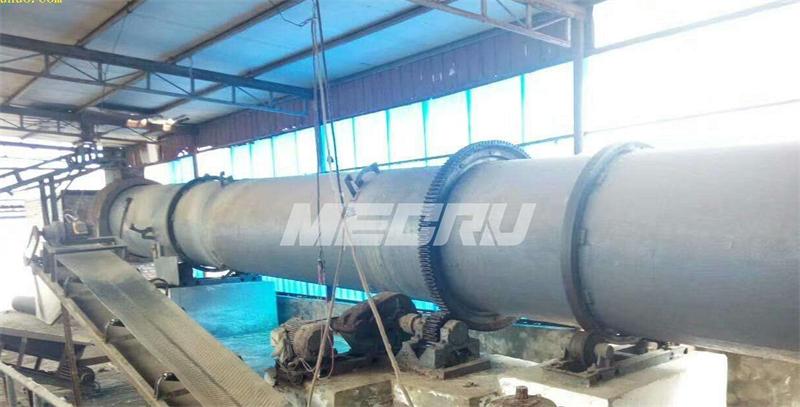

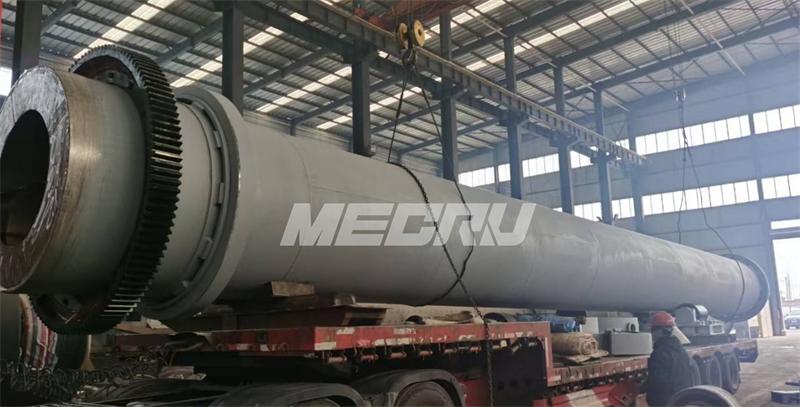

The rotary cooler is one of the important equipment in the rotary kiln system. Its function is to cool the clinker from the rotary kiln (1000-1300℃) to below 200℃, while improving the quality and grindability of the clinker.

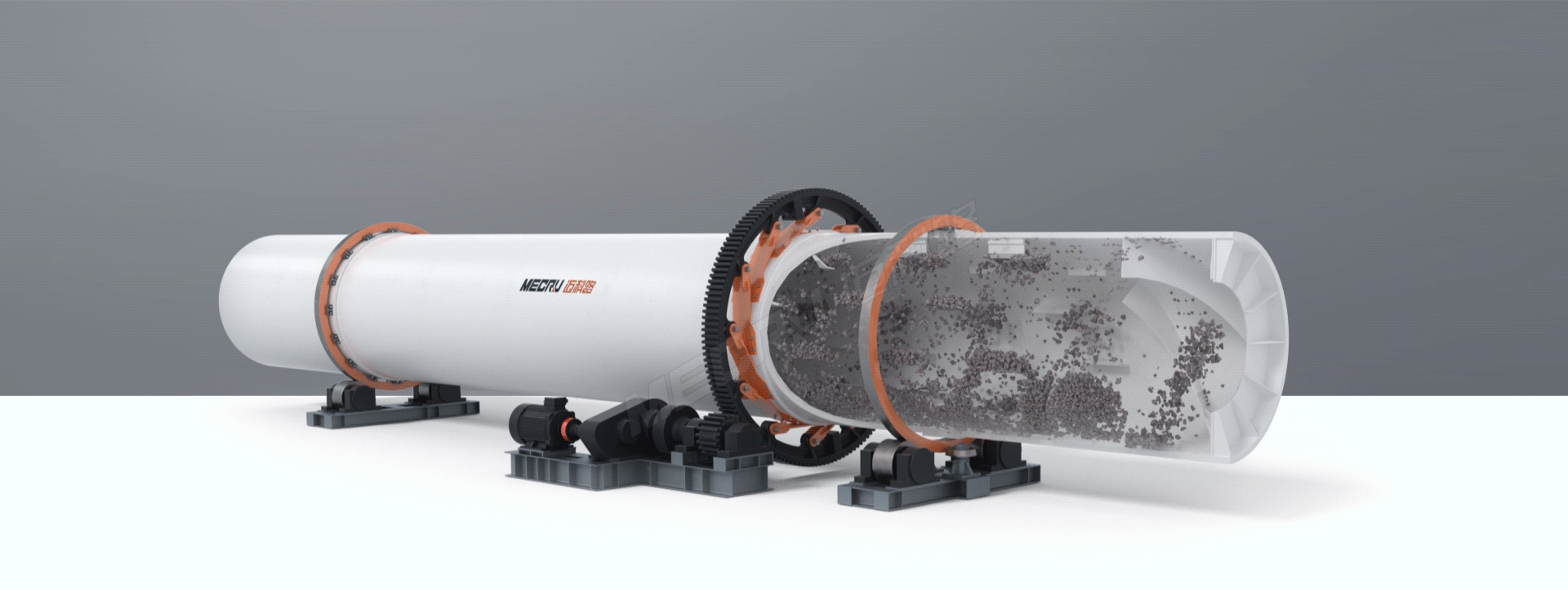

The high temperature clinker after the rotary kiln calcination enters the cooler through the feeder. And the cooler rotates to drive the material to fully exchange heat with the air, at the same time as the kiln body in accordance with the design of the slope and speed of rotation, the material is also in the kiln periodically rolling forward. So as to transfer the raw material from the feed end to the discharge end, and ensure that the material through the rotary kiln in the time to cool it to 200℃ below.
| Specifications（m） Diameter × length |
Capacity (t/h) |
Slope (%) |
Main motor power (kw) |
Weight (t) |
| Φ1.5×15 | 2-3 | 3-5 | 15 | 28 |
| Φ1.5×20 | 3-4 | 3-5 | 15 | 35 |
| Φ1.8×18 | 4-6 | 3-5 | 18.5 | 47 |
| Φ2.0×22 | 7-8.5 | 3-5 | 22 | 61 |
| Φ2.2×18 | 7-8.5 | 3-5 | 22 | 64 |
| Φ2.2×22 | 8-10 | 3-5 | 30 | 73 |
| Φ2.4×24 | 12-15 | 3-5 | 45 | 98 |
| Φ2.5×25 | 15-20 | 3-5 | 55 | 110 |
| Φ2.8×28 | 16-22 | 3-5 | 55 | 130 |
| Φ3.0×30 | 20-25 | 3-5 | 75 | 169 |
| Φ3.2×36 | 28-32 | 3-5 | 90 | 200 |
| Φ3.3×40 | 32-36 | 3-5 | 132 | 237 |
| Φ3.6×36 | 35-38 | 3-5 | 185 | 318 |
| Φ4.0×36 | 50-60 | 3-5 | 220 | 348 |
| Φ4.0×45 | 60-70 | 3-5 | 250 | 414 |
| Φ4.5×50 | 70-75 | 3-5 | 315 | 576 |
